This 1/2 in. overlay double demountable hinge is a great replacement or upgrade to your existing cabinetry. These hinges are for retrofit only.

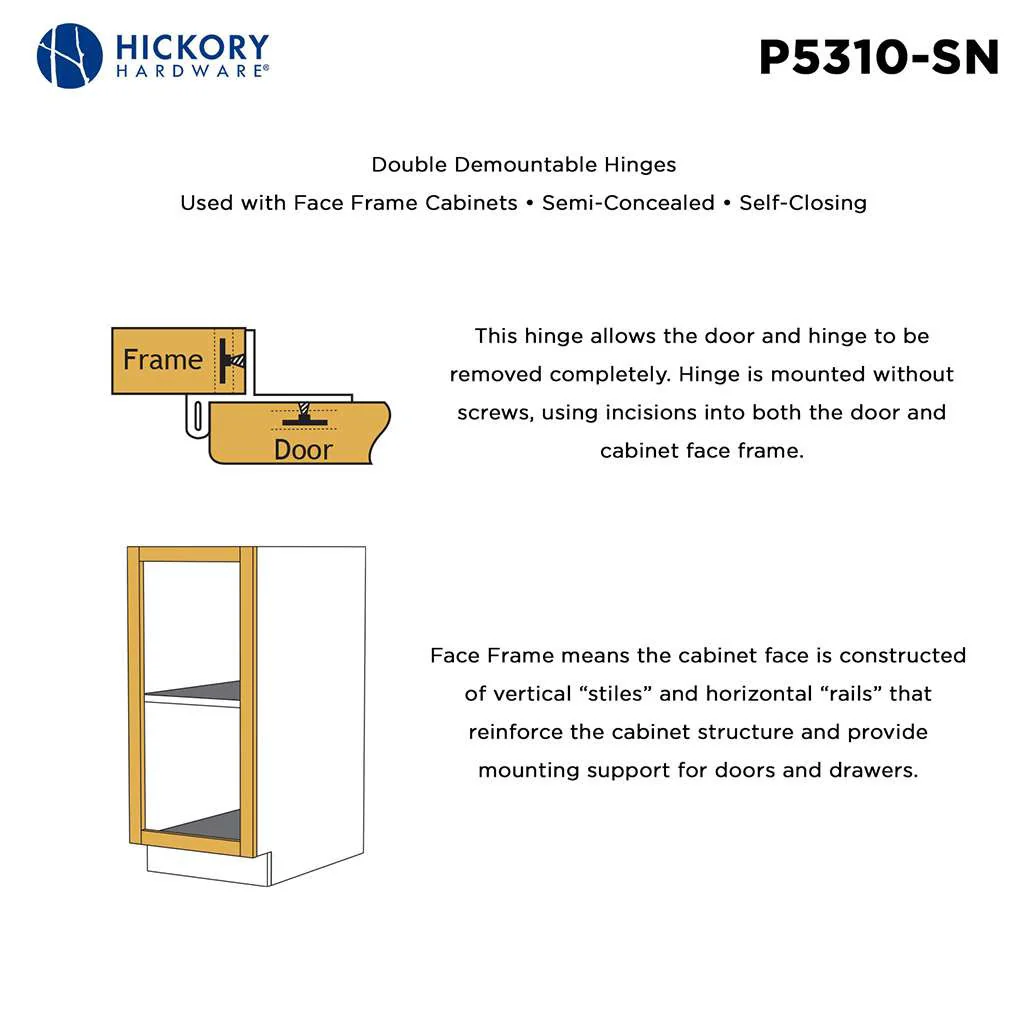

Replacement for face-frame cabinets

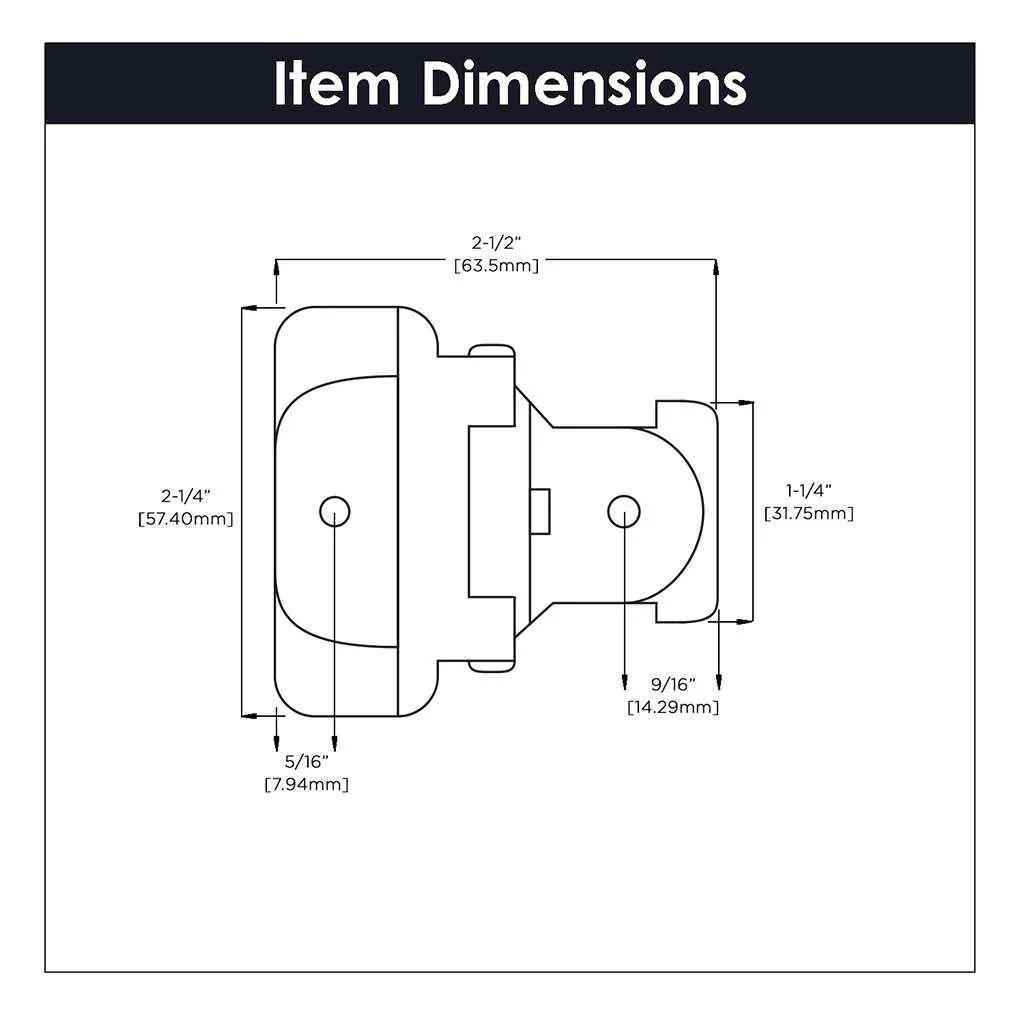

Product Specifications:

• Hickory Hardware P5310-SN
• Overlay: 1/2 inch
• Length: 2-1/4 inch
• Width: 1-1/2 inch
• Projection: 1-3/8 inch
• Finish: Satin Nickel
• Material: Steel

Product Features:

• Includes 2 hinges in each order
• Hinges are self-closing with dual compression springs

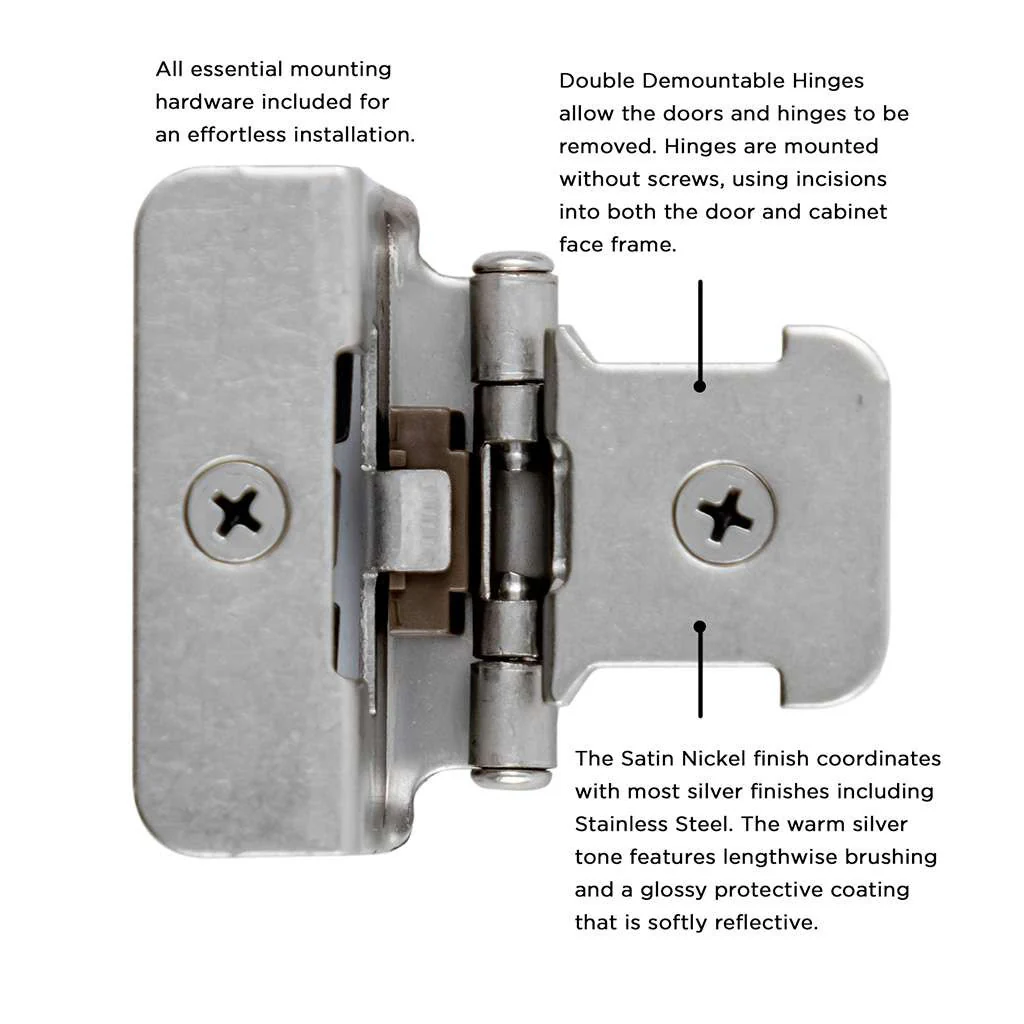

• 2 demountable plates instead of mounting screws - plates slide into pre-routed slots and features full 3-way adjustability

Overlay: an overlay hinge is needed when the cabinet door sits on top of the cabinet frame.

HICKORY Double Demountable 1/2" Overlay Partial Wrap Cabinet Hinge (pair) in Satin Nickel P5310-SN
